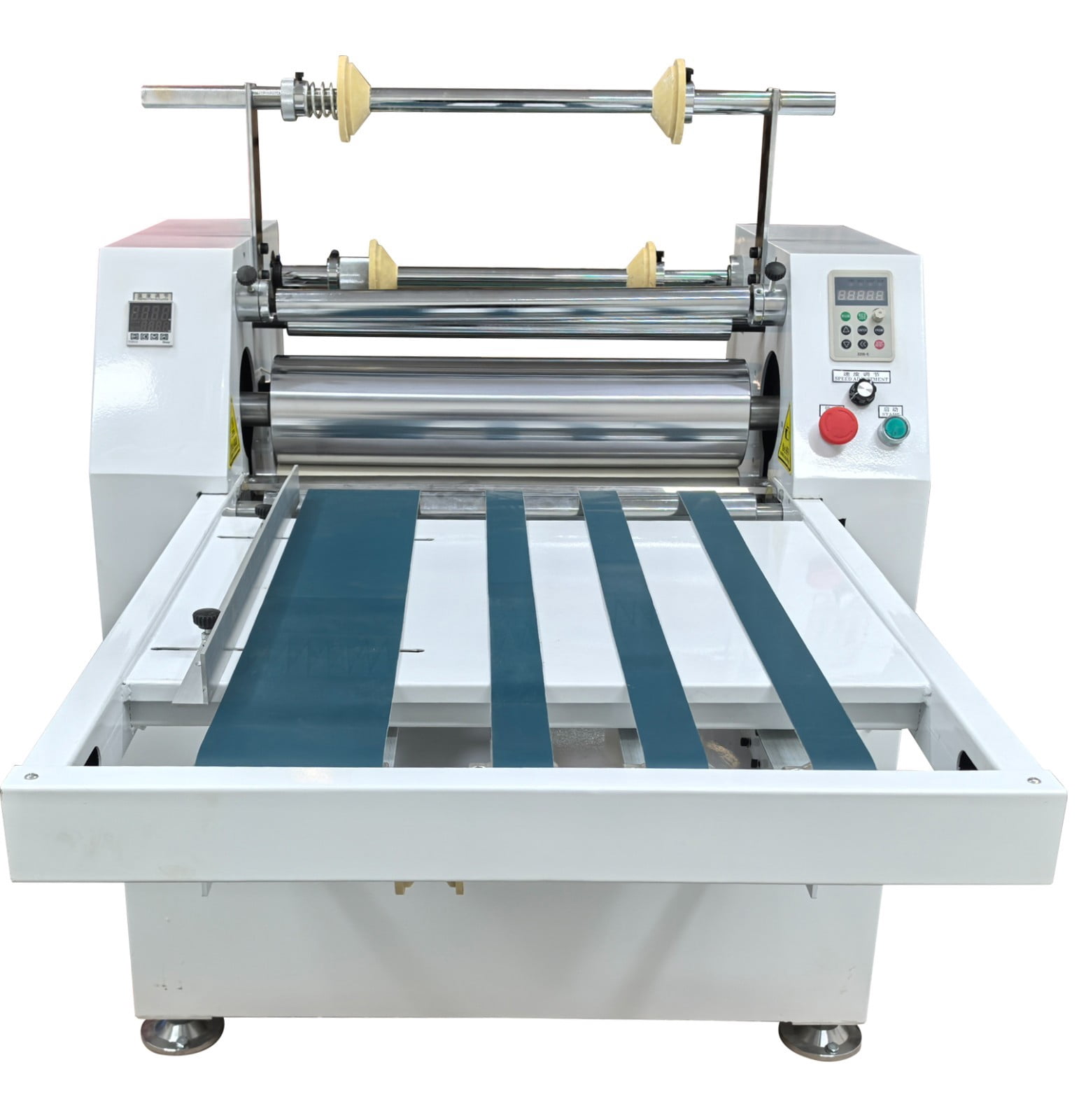

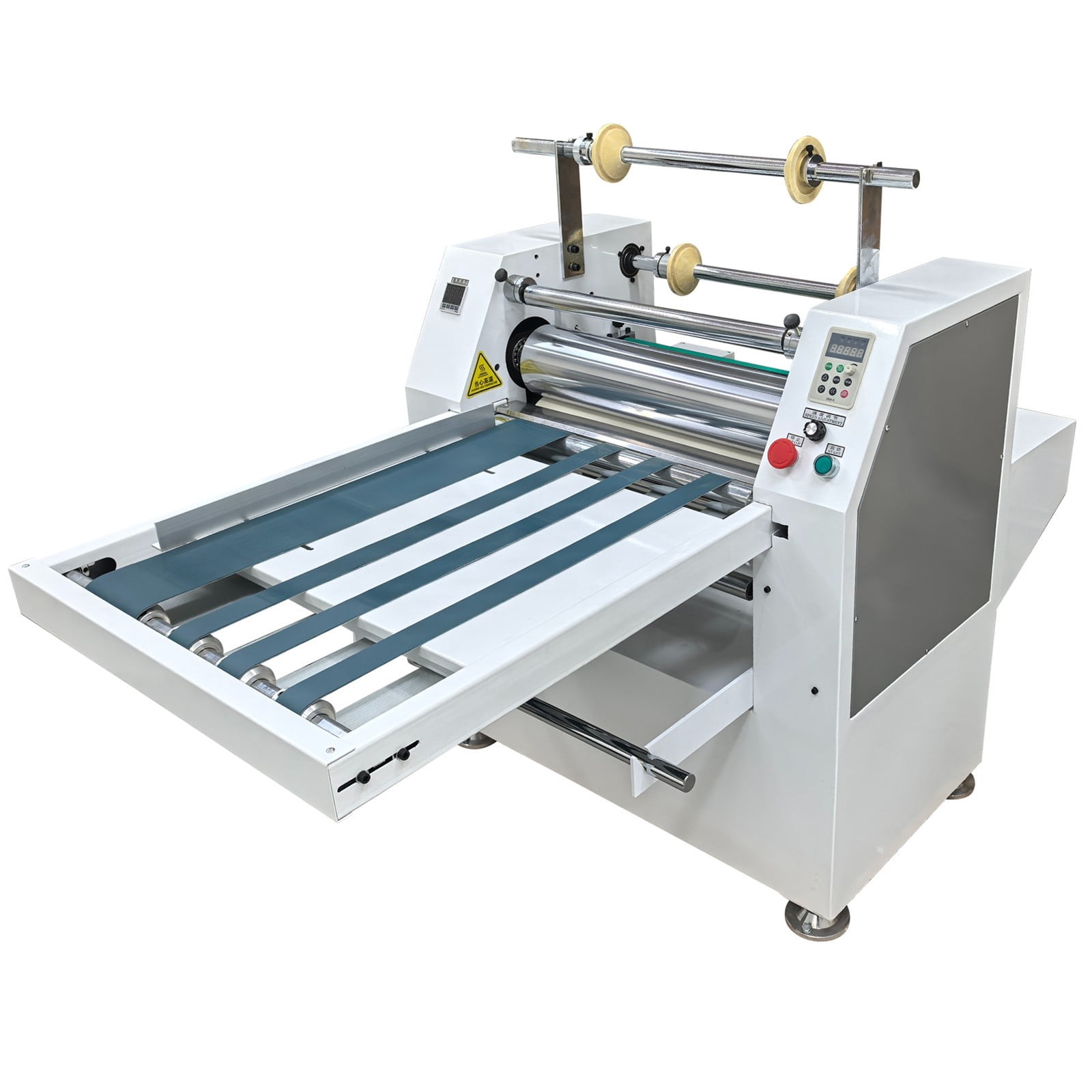

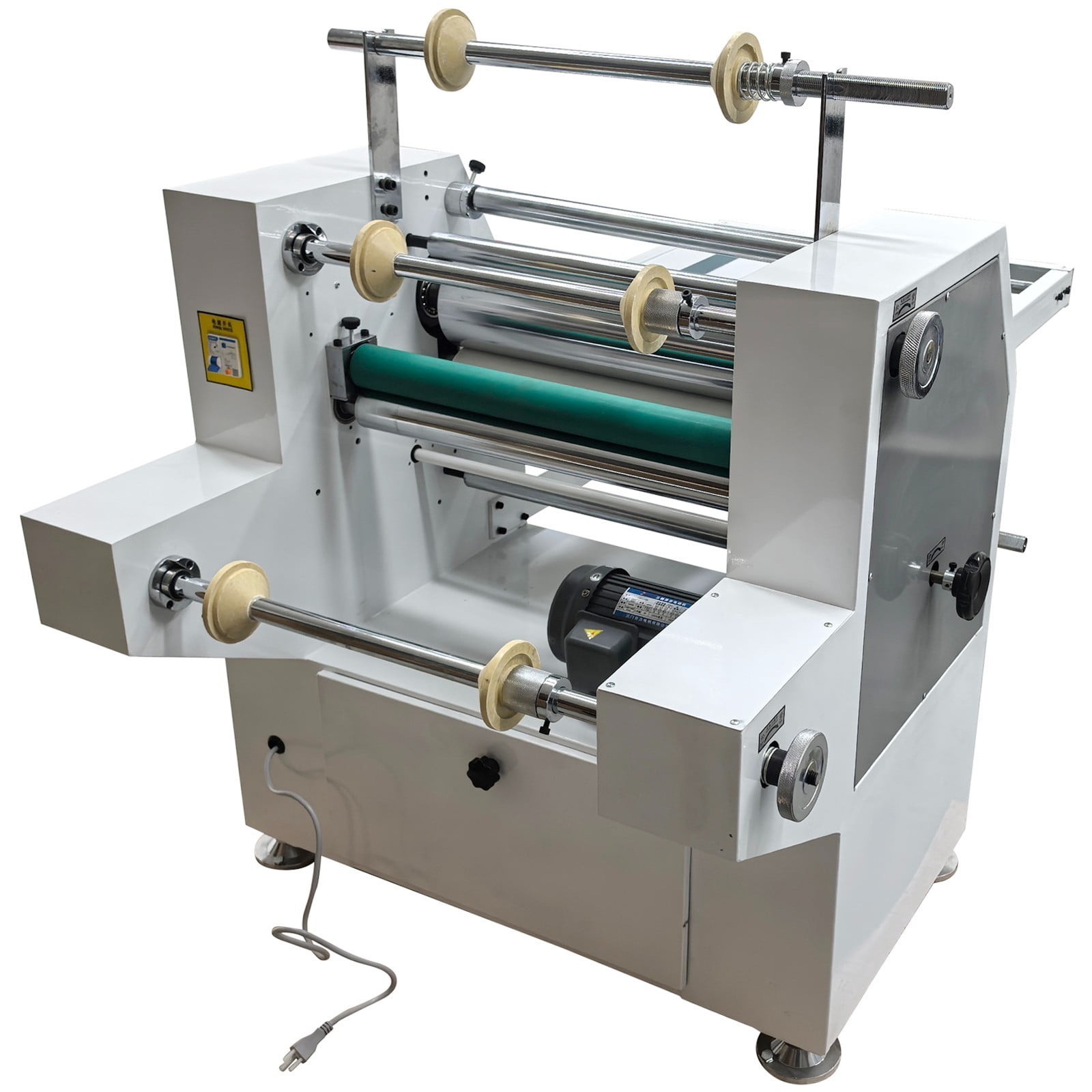

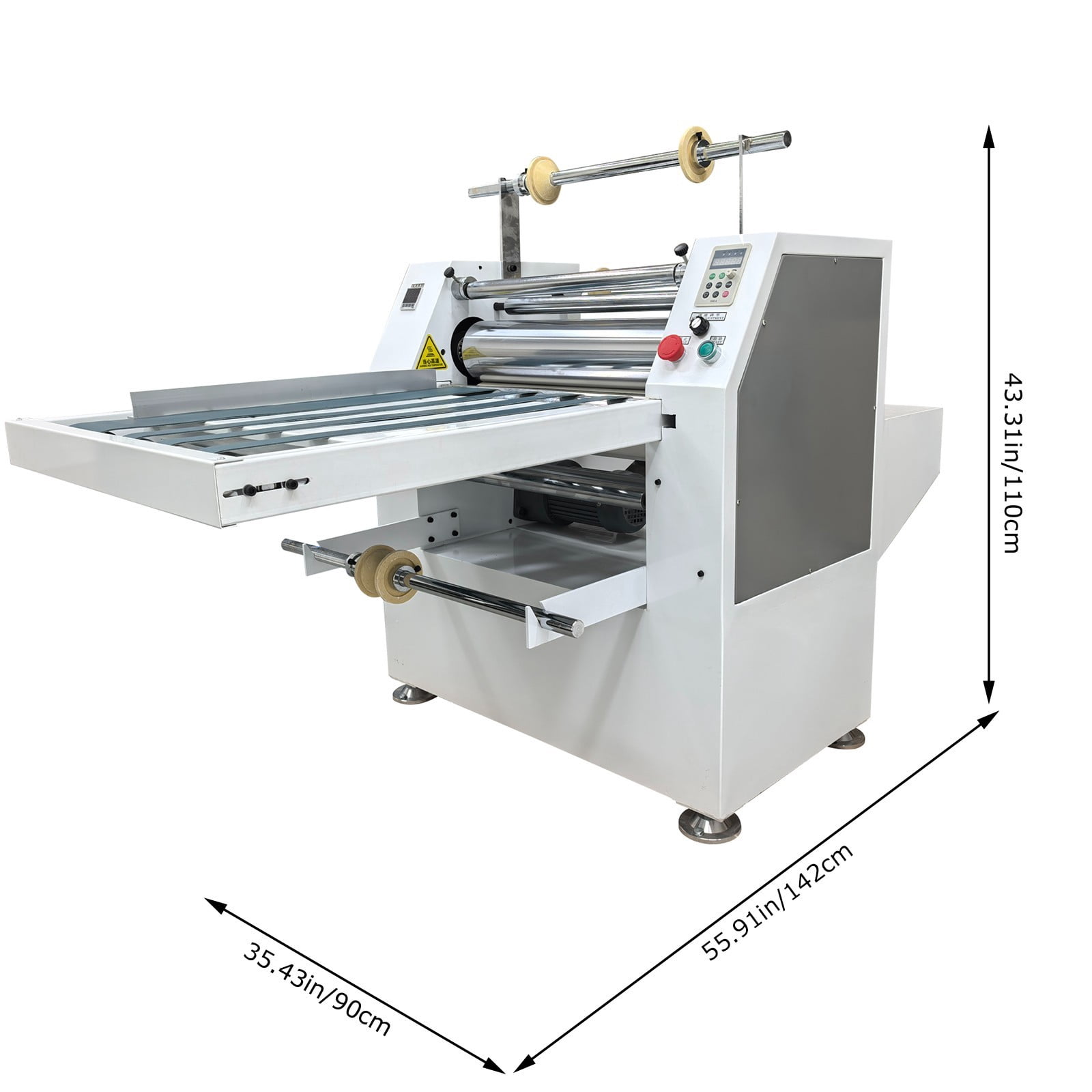

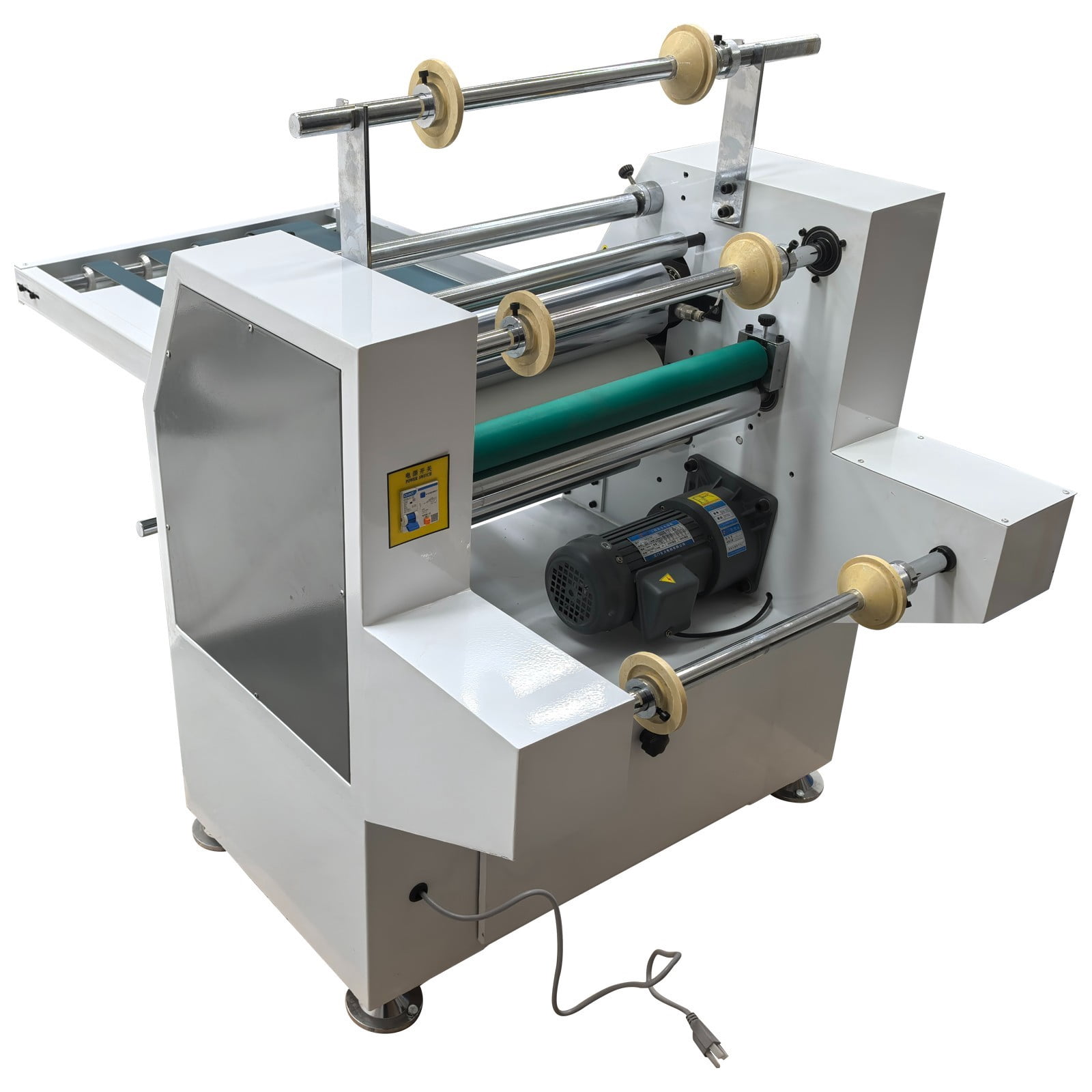

17.72in Steel Roller Thermal Laminator with Conveyor Belt Winding Mechanism

<p>Introduction:<br>This automatic steel roller thermal laminating machine is a professional, high-efficiency laminator that bonds BOPP, pre-coating, protective, and other films to printed materials for smooth surfaces, vibrant colors, and sharp lines.It provides waterproofing, stain resistance, and increased paper strength, ideal for paper, packaging cartons, ABS rolls, non-woven materials, and more, effectively enhancing print quality.Supporting both single-sided lamination and roll-to-roll lamination, it features a compact structure, stable and safe operation, and a small footprint. Easy to move, it is suitable for print shops, packaging factories, and various production settings.</p> <p>Notice：No free return service is provided for non-quality problems.</p> <p>Parameter:<br>Model: ZXFM-520J<br>Maximum laminating width: 450mm (17.72in)<br>Applicable material: ≤8mm (0.31in) in thickness<br>Laminating speed: 0~15m/min (0~49.21ft/min) Stepless variable-frequency speed regulation<br>Laminating temperature range: 0~140˚C<br>Pressure range: Cam Spring type Pressurization<br>Heating mode: Electric heating built-in mirror tube<br>Feeding frame: Conveyor belt type automatic feeding frame<br>Collecting and unwinding frame: Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding<br>Voltage: 110V<br>Total power: 2Kw<br>Machine size: 90*142*110cm (35.43*55.91*43.31 inches)<br>Net weight: 159KG (350.53LBs)</p> <p>Item included: 120130<br>1 x Steel Roller Thermal Laminator 110V </p>

• 【Precise Digital Temperature Control】Digital display for accurate heating and real-time temperature monitoring.

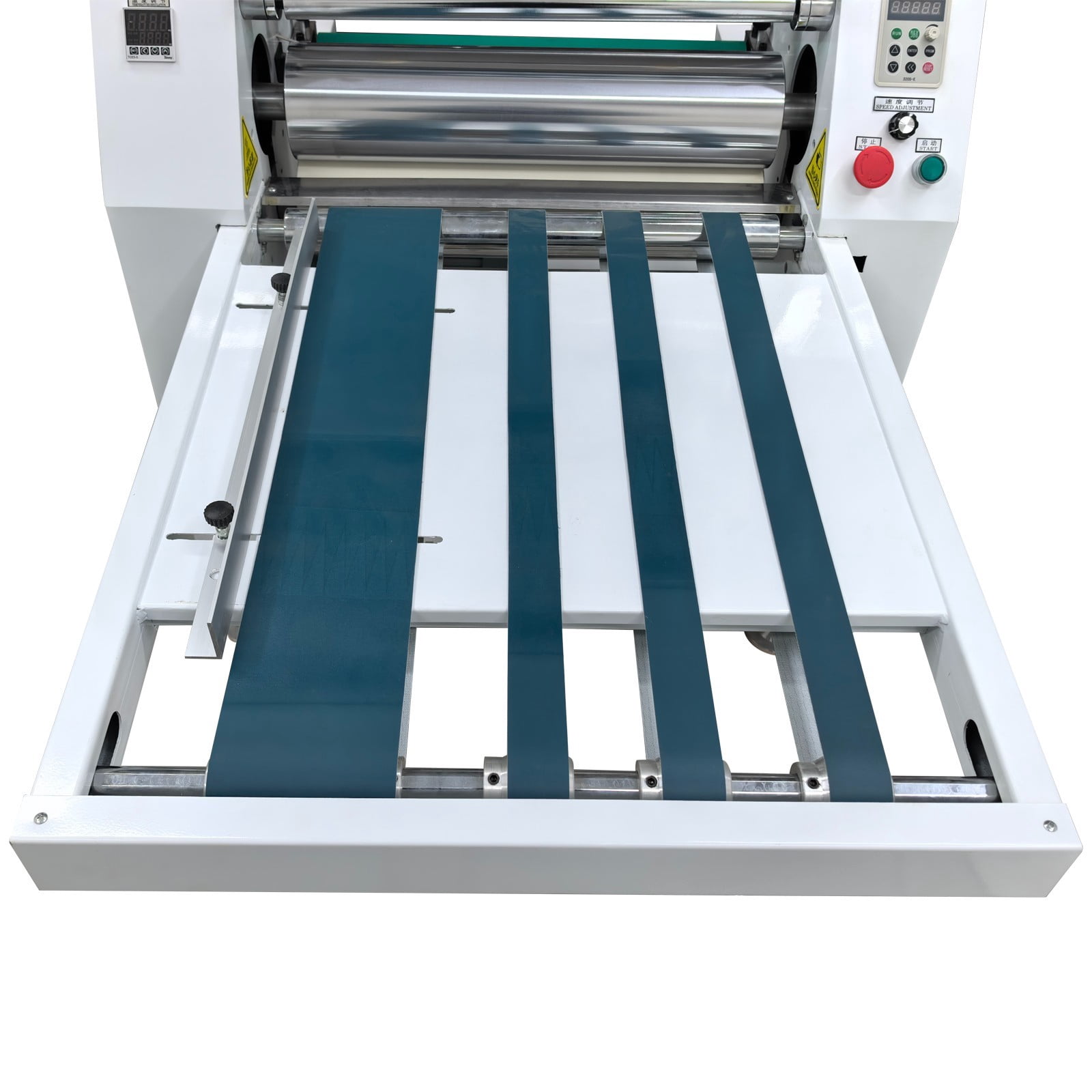

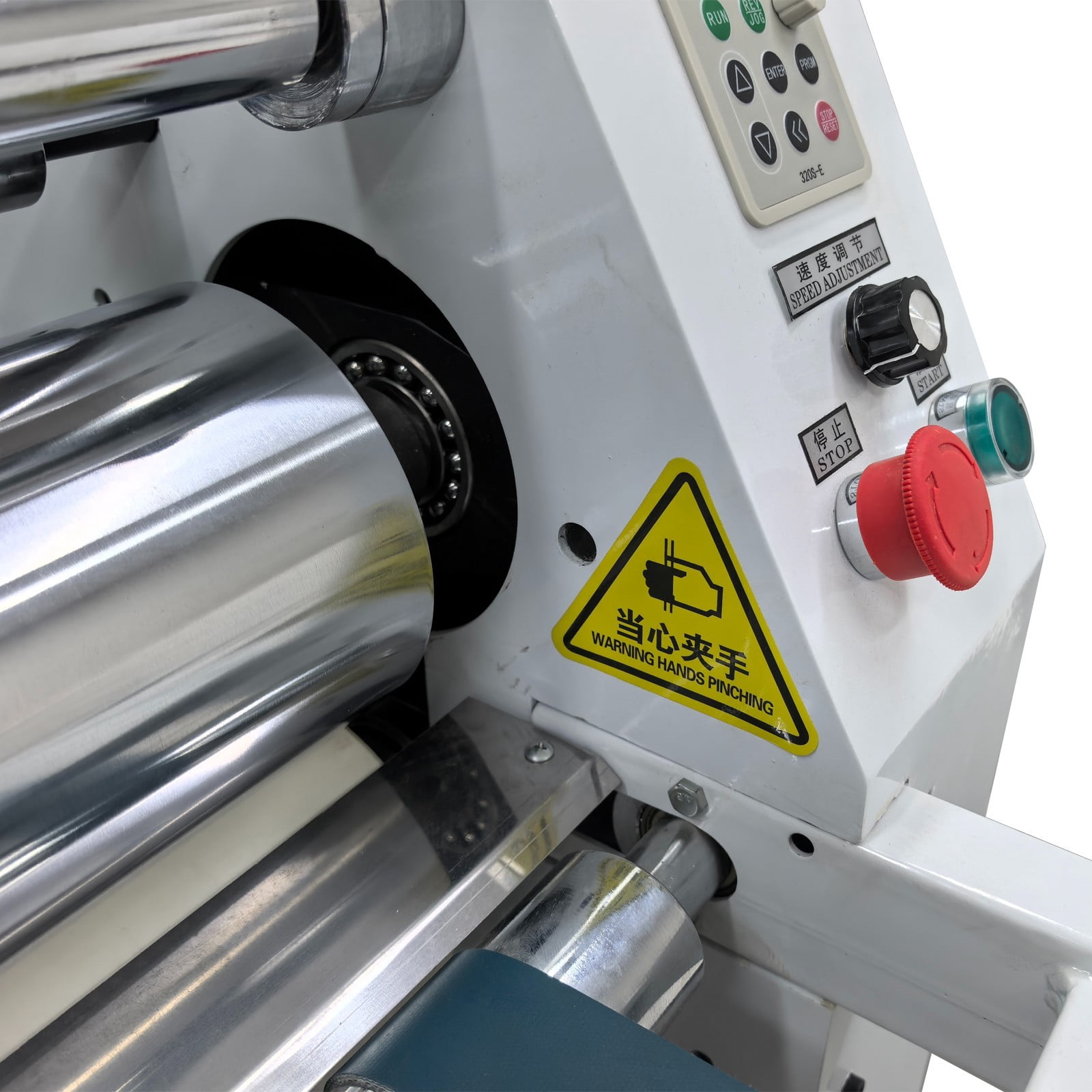

• 【Adjustable Speed & Smooth Feeding】Frequency speed control with easy knob; long conveyor belt with baffle ensures stable paper feeding.
• 【Durable Transmission & Steel Roller】Wear-resistant chain drive for stable operation; mirror-finish steel roller provides high temp resistance and even lamination.

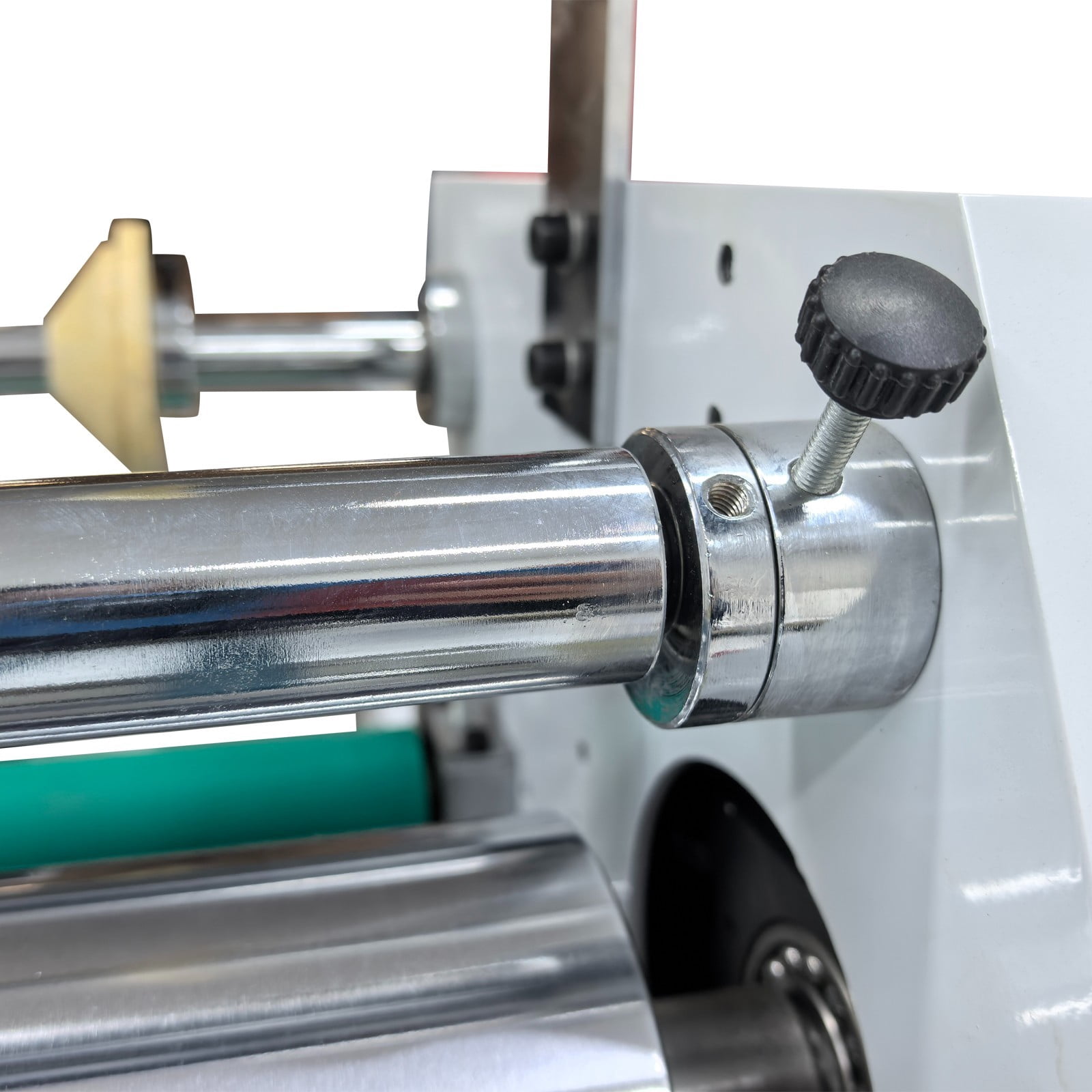

• 【Flexible System】Multiple handwheels & tension controls deliver precise, easy adjustment for various materials.
• 【Stable Lamination】Film tension control and even roller heating ensure uniform, high-quality lamination for various materials.
